WQD Series Dirty Water Submersible Pump

Short Description:

Product: Float switch dirty water submersible pump

Main Materials:

Top cover : cast iron

Motor case: stainless steel

Pump body: cast iron

Impeller: cast iron

Application:

For domestic or industrial waste water, dirty water with solids
For draining rooms or emptying tanks
Extraction of water from ponds, flowing water or pits and for rainwater collection


Product Detail

Product Tags

Working conditions

. Liquid temperature up to +35℃

. Ambient temperature up to +40℃

. Max. Immersion depth 5m

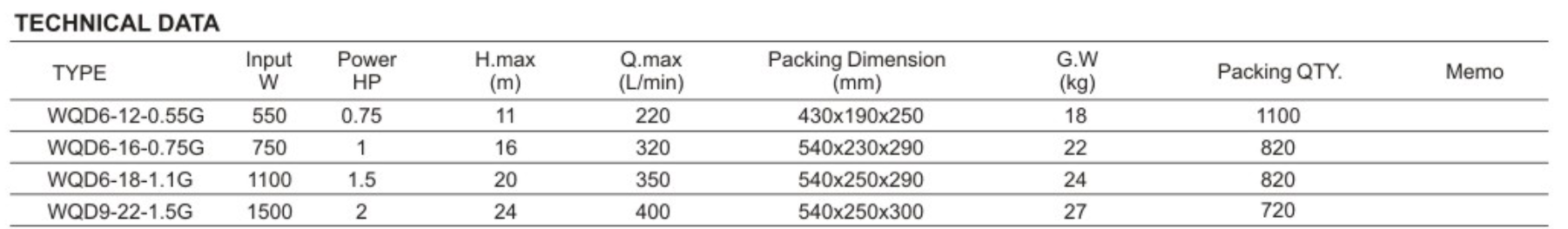

Technical data

ta

More details or request

(1) motor
100% copper wire
With thermal protector incorporated into the winding

(2) Voltage
Single phase 220V-240V/50HZ or three phase 380V-415V/50HZ
Other request such as 60HZ we could check to make

(3) Shaft
Stainless steel AISI304 is available

(4) Float switch
Available with float switch for automatic start/stop,or remove it

(5) Cable
Standard with 9 meters of cable with plug,longer or shorter as you require

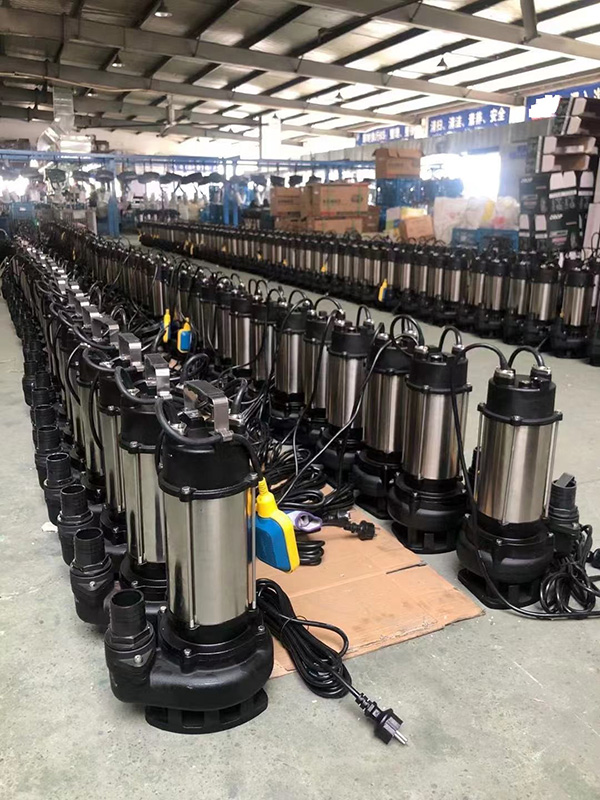

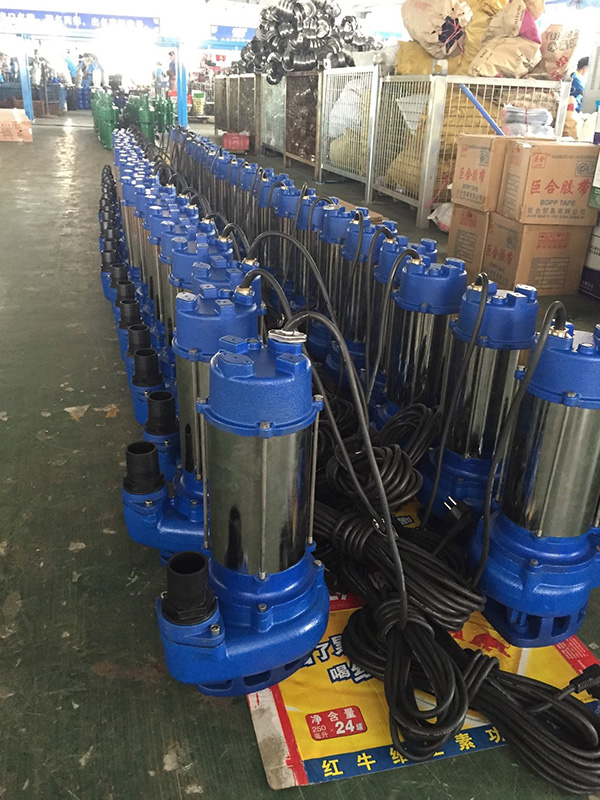

Production View

p1
p2

Brand

Could do OEM Brand,but if you use our brand, more support and competitive price you could get.

MOQ and sample

Sample or try order is ok.

Customized product

Accept your specific order with your special requirement ,or follow your sample details

Delivery time

Normally it will take about 30 days to finish the order after receiving the advance deposit.

Payment term

T/T term: 20% advance deposit,80%balance against copy of bill of lading
L/C term: normally L/C at sight, longer time for discuss.
D/P term, 20% advance deposit, 80% balance by D/P at sight
Credit insurance: 20% advance deposit,80% balance OA 60days after insurance company give us report, longer time for discuss

Warranty

The warranty period for the product is 13 months (calculated from the date of bill of lading). If there is a manufacturing quality issue that belongs to the supplier during the warranty period, according to the pertinent vulnerable parts and components, the supplier must be liable for delivering or replacing the repair parts following the joint identification and certification of both parties. There is no mention of accessories in the quotation for conventional goods. According to the real feedback, we will negotiate to offer vulnerable components for maintenance throughout the warranty term, and some parts may need to be purchased for a cost. You can submit any quality issues for investigation and negotiation.
