SCM2 Series Centrifugal Type Water Pump
Application
These pumps are suitable for handling clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.
They are extremely reliable, simple to use quiet and virtually maintance free, finding many uses in domestic and civil applications, and in particular the automatic distribution of water from small and medium-sized surge tanks, transferring water, watering gardens. etc.
Working conditions
Max temperature of Fluid up to +60℃
Max Ambient Temperature up to 40℃
Suction lift up to 8m

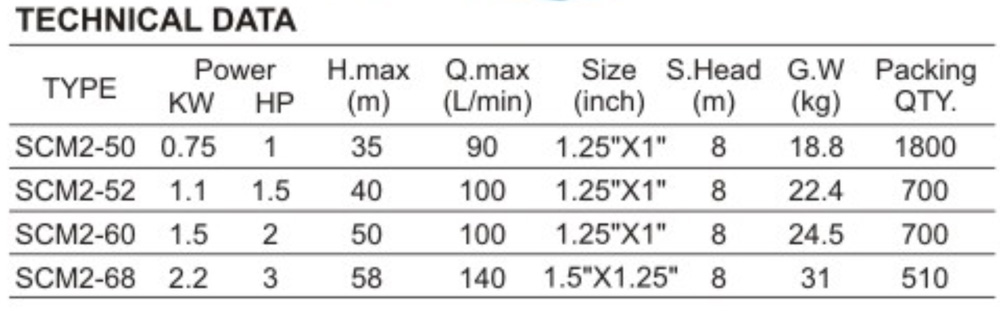

Technical data
Technical Description
1. motor
full copper motor coil with machine wiring,new stator ,good temperature rise control,stable working performance
(aluminum winding wire and different stator length could be made according to what customer ask for）
2. Impeller
Twin Brass impellers( two impellers working)
3. Rotor and shaft
Surface moisture proof ,anti rust treatment
Carbon steel shaft or 304 stainless steel shaft

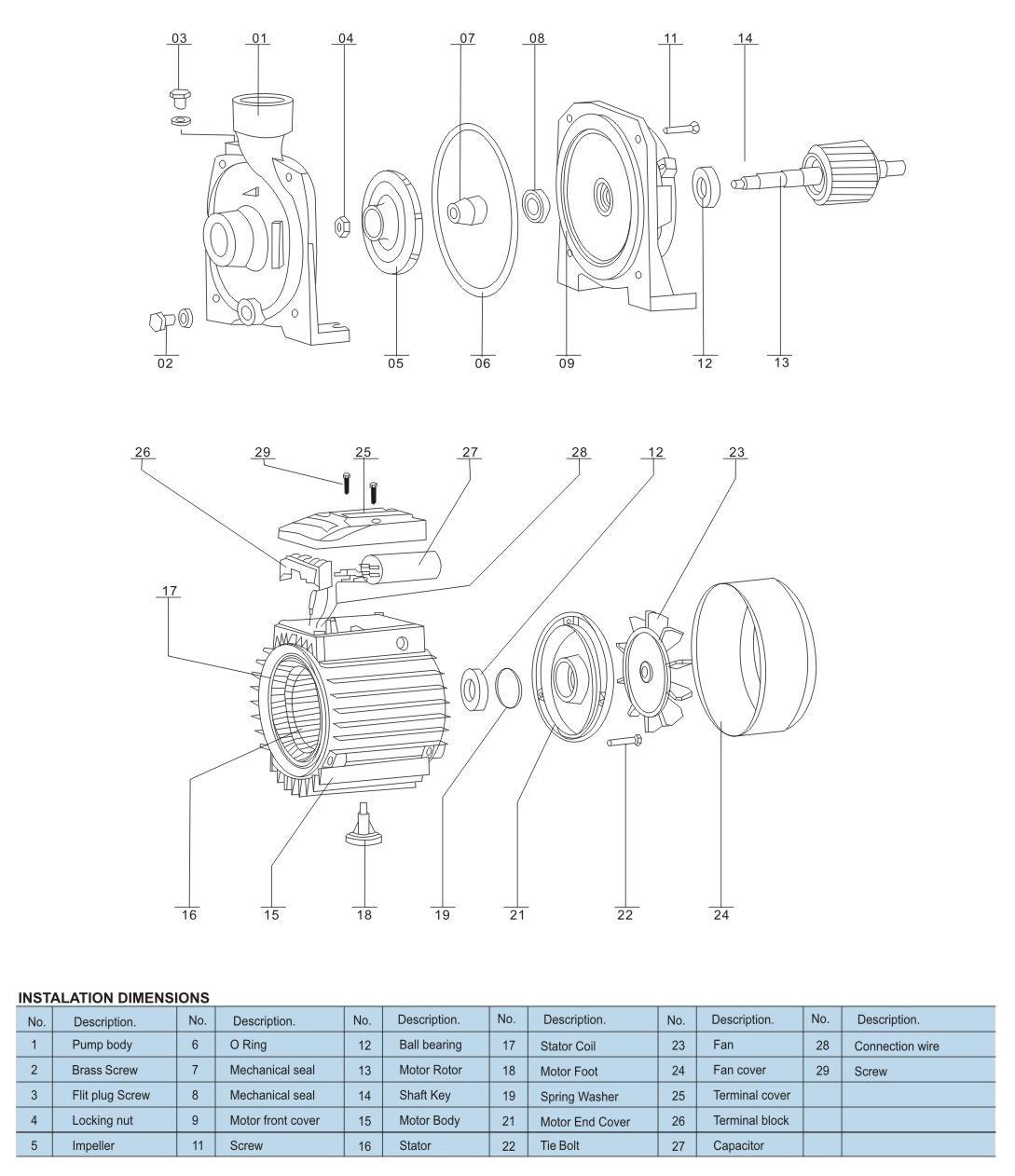

Exploded View
Production line
Quality control
observe the quality management system ISO 9001.
Starting with design, testing, and approval before acceptance, from a sample to a batch purchase
Before entering our warehouse, our suppliers' materials are examined.
to prepare operation instructions and a quality control strategy.
Test equipment detected it during production; a second spot check was done before distribution.
Installation instruction
The pumps should be located in a dry and well-ventilated area with an ambient temperature not exceeding 40°C (as shown in Fig. A). To prevent vibration, the pump must be securely fastened using appropriate bolts on a stable and flat surface. Proper functioning of the bearings requires horizontal mounting of the pump. The diameter of the intake pipe must not be smaller than that of the intake motor. If the intake height is greater than 4 meters, a pipe with a larger diameter should be used. The diameter of the delivery pipe must be selected based on the necessary flow rate and pressure at the takeoff sites. To avoid the development of air locks, the intake pipe should be slightly inclined upward toward the intake mouth (as shown in Fig. B). It is important to ensure that the intake pipe is fully submerged and sealed.
Packing
good material carton box, make full color design,with foam protection inside
Transportation
Priority bulk cargo or full container loading in the ports of Ningbo, Shanghai, and Yiwu.
Samples
If the sample is expensive, there may be a fee; if you place a formal order, consider a charge refund.
Could check sample shipment by land, sea, or even air as you like.
Payment term
T/T term: 20% deposit in advance, 80% balance against copy of bill of lading
L/C term: usually payable at sight
D/P term, 20% deposit in advance, 80% balance of D/P at sight
Credit insurance: 20% down payment first, 80% balance OA 60 days after the insurance company gives us the report
Warranty
Using a serial number is a good method to track the pump and respond to user inquiries. The product warranty period is 13 months from the date of the bill of lading. If any manufacturing quality problems arise within the warranty period related to vulnerable parts and components, the Supplier will be responsible for providing replacement parts after both parties have confirmed the issue. The standard product quotation does not include the cost of any accessories. During the warranty period, based on user feedback, we will negotiate to provide vulnerable parts for maintenance, and some parts may need to be purchased with compensation. Any quality issues can be reported for research and negotiation.
