DL Series Three Phase Electric Motor

Short Description:

DL series three-phase asynchronous electric motors, totally enclosed fan-cooled squirrel-cage AC asynchronous motors with IP55 or IP54 protection degree and class F insulation, have been lately developed with our own design. The motor with removable feet is made of aluminum-alloy die-casting. Various mounting mode is available. Its efficiency class has reached the minimum efficiency standard in China and is in accordance to CEMEP EFF2(MEPS). What’s more,it can be improved to EFF1(MEPS2) standard in Europe and high efficiency standard in US. JL series electric motors have a lot of advantages including high efficiency, energy saving, large starting torque, excellent performance,low noise, low vibration,high reliability, convenient operation and maintenance, and the mounting dimension and power rate in conformity to the IEC standard, and so on.


Product Detail

Product Tags

Designation

Ambient temperature:-15℃≤0≤40℃
Altitude: Altitude should be lower than 1000 meter above sea level. Rated voltage:380V 400V 415V
Rated frequency: 50HZ 60HZ
Connection: Star-connection for 3kw or less whereas delta-connection for 4kw or more. Duty/Rating: Continuous(S1)
Insulation class:F,the temperature rise of the stator winding is examined at 80K(by resistance method).
Protection class: The main body of the motor is IP54, IP55, but the terminal box reaches IP55.
Cooling method: IC411

Application

fit for the common sites and concise machineries that have no special requirements including reducers,compressors,pumps,assembling line,packing machines,foodstuff processing machineries,etc.

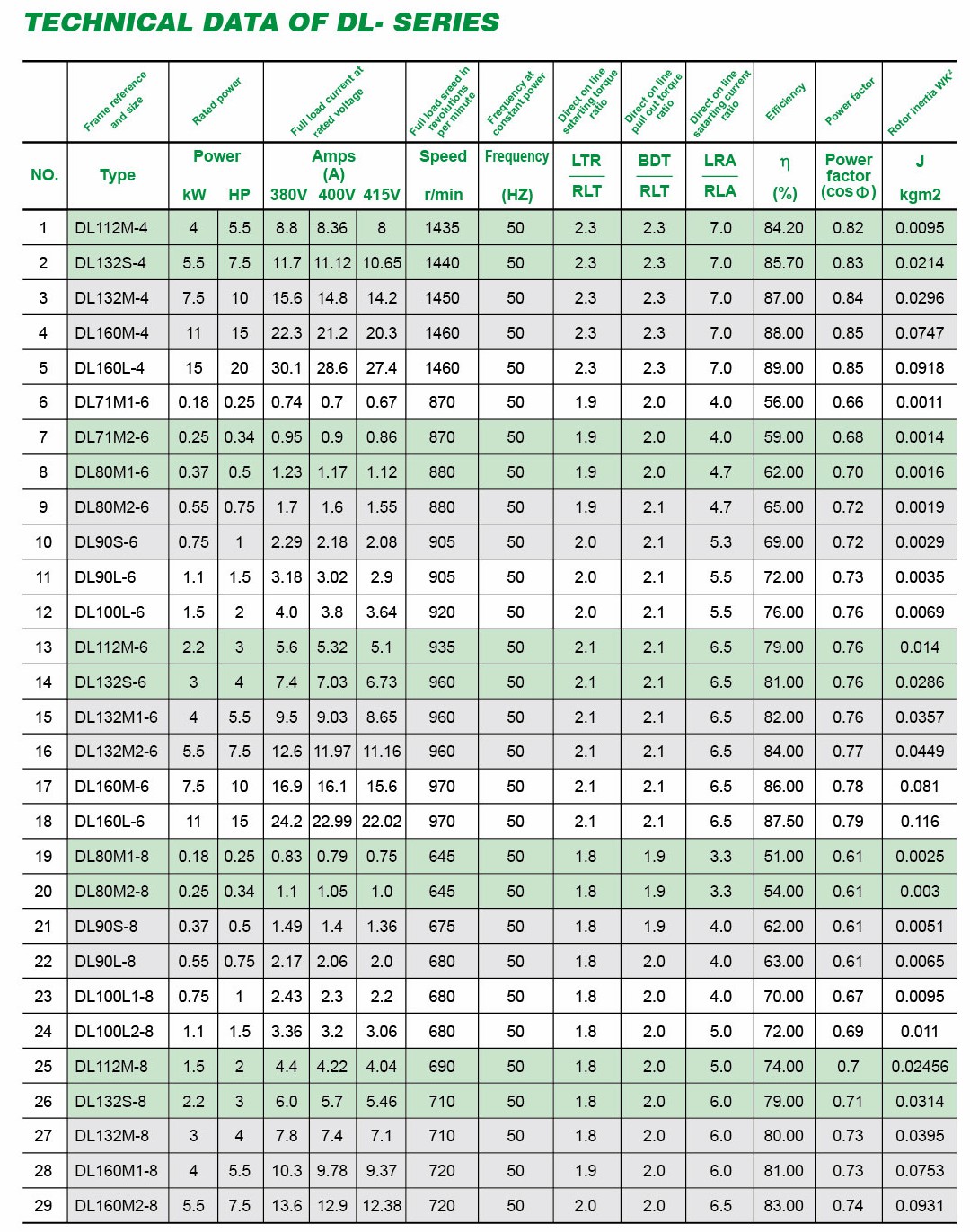

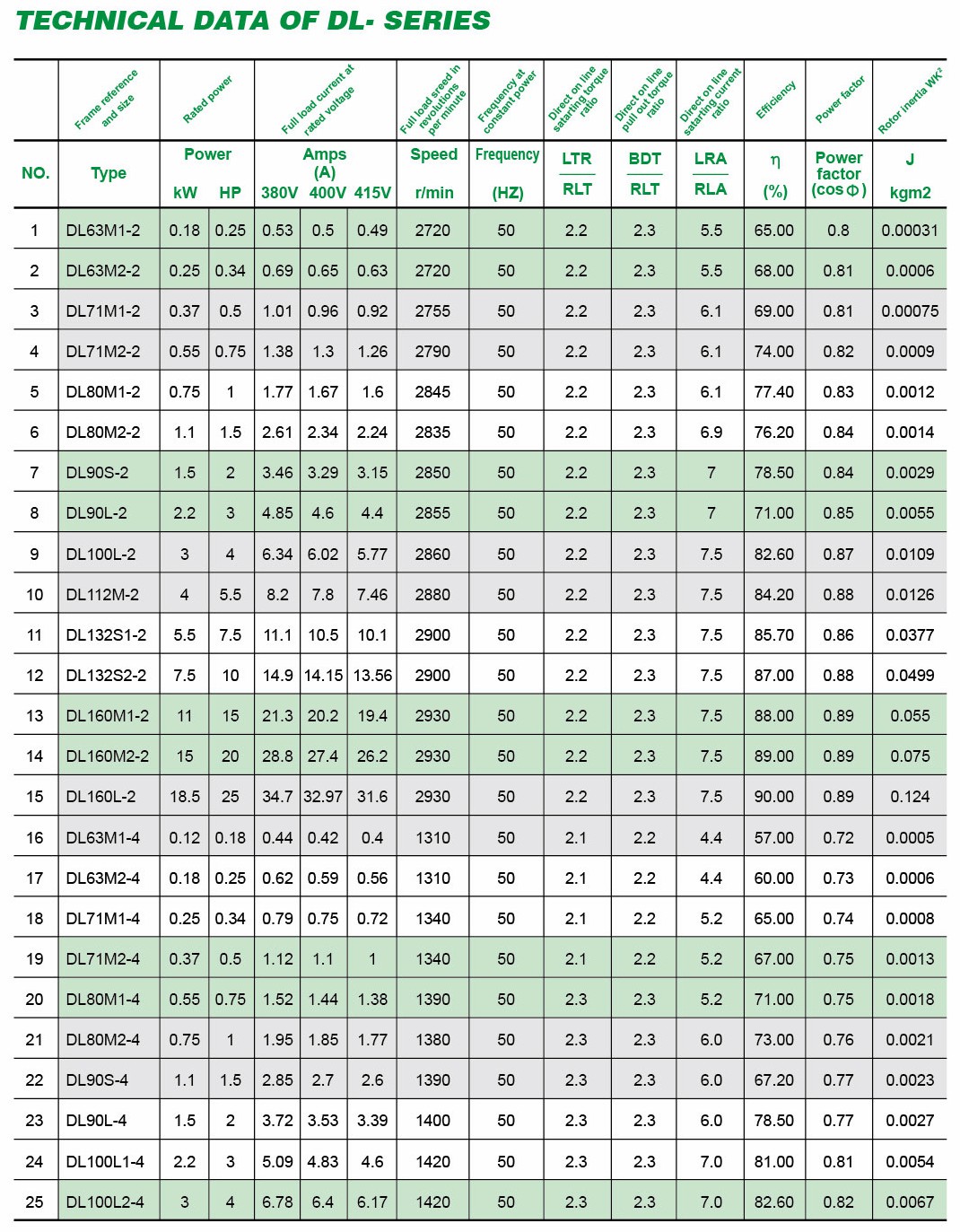

Technical data

img (1)
img (2)

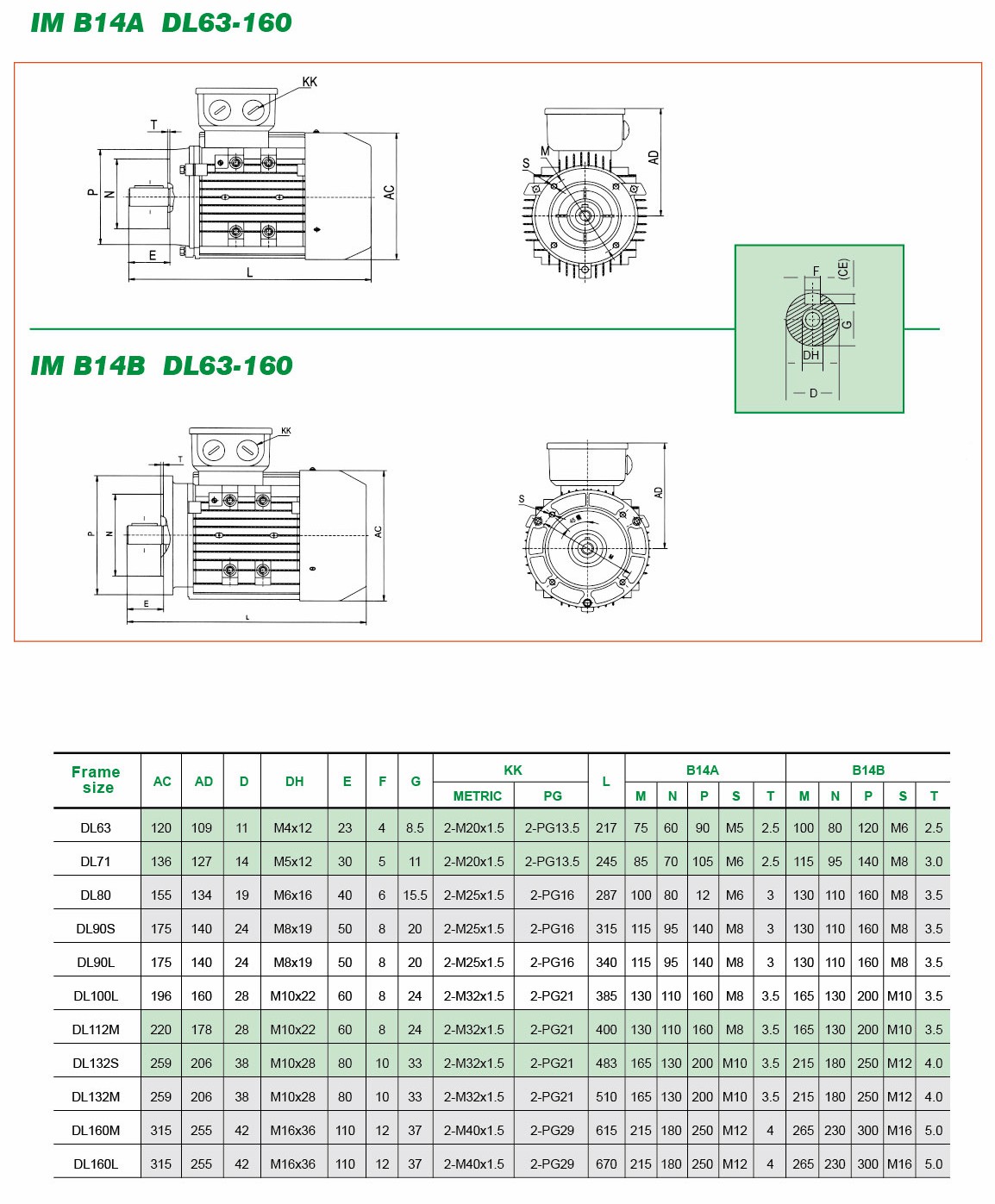

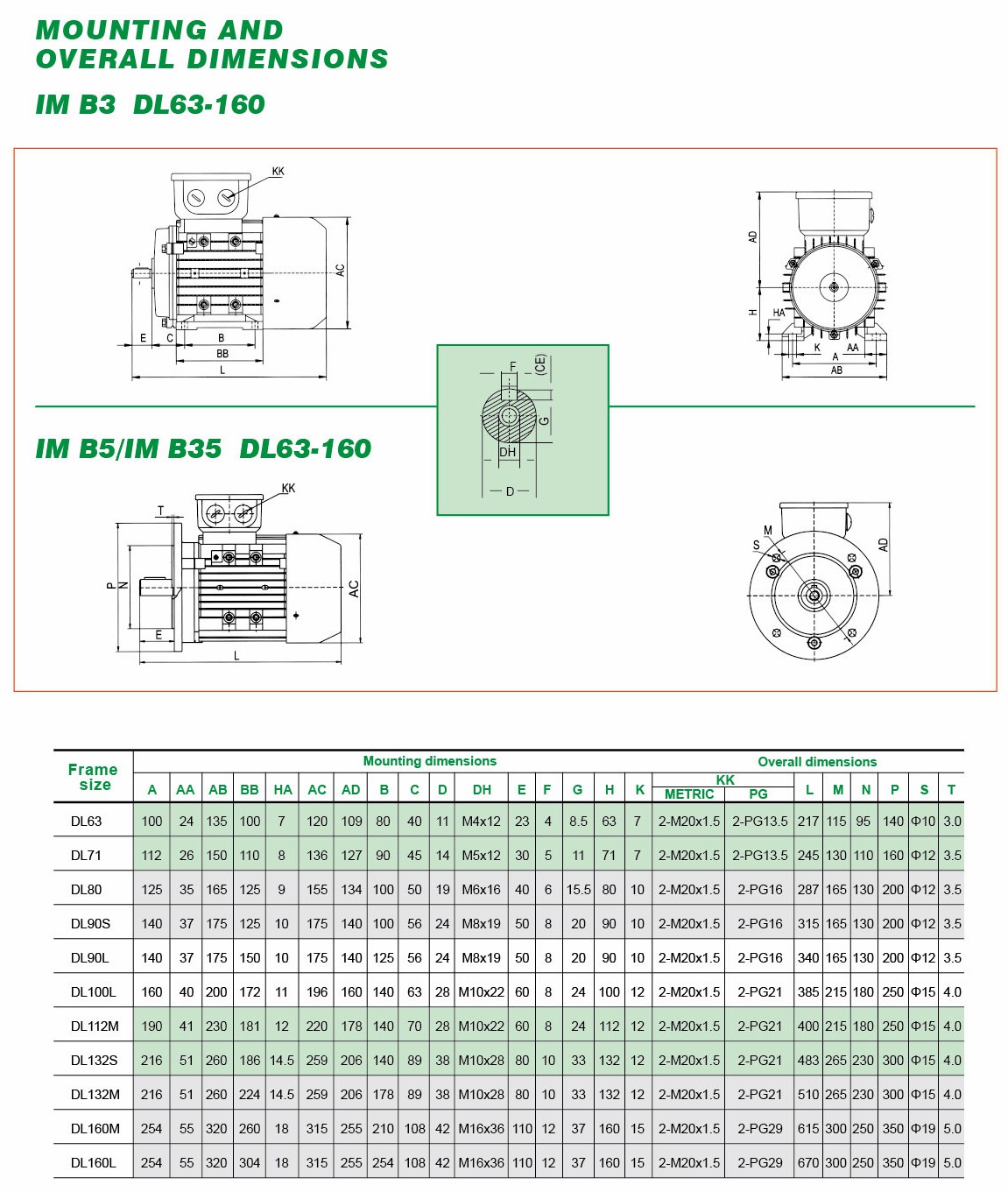

DL OVERALL & INSTALLATION DIMEENSION(MM)

img (3)
img (4)

Production View

img-1
img-2
img-3
img-4
img-5
img-6

Brand

While selecting our brand will provide you access to greater assistance and more competitive price, OEM brands are still a possibility.

MOQ and sample

50 pieces minimum for each model
Provide a test sample for free

Customized item

Accept your custom requests and individual order, or follow your sample requirements.

Delivery time

The order will normally be completed in around 30 days after the advance deposit has been received.
7.Payment term
(1)T/T term:20% advance payment, 80% remainder due with a copy of the bill of lading
(2)L/C term: prefer L/C at sight ,consider for longer
(3)D/P term:20% advance deposit, 80% balance via D/P at sight
(4) Credit insurance: 20% down payment, 80% OA 60 days after insurance company reports

Warranty

To track the warranty duration and follow the after-sale service, mark the nameplate with Serial No.
one year from the shipment departure date.
