4 Inch Multistage Borehole Pump
Application
For water supply from wells or reservoirs.
Providing your drinking water from a well
Irrigating your garden, lawn, lot or small holding
Keeping your swimming pool crystal clear
Agriculture irrigation
Farm livestock water for your animals
Working conditions
Insulation class:B
Protection grade:IP 68
Highest temperature of liquid:35℃

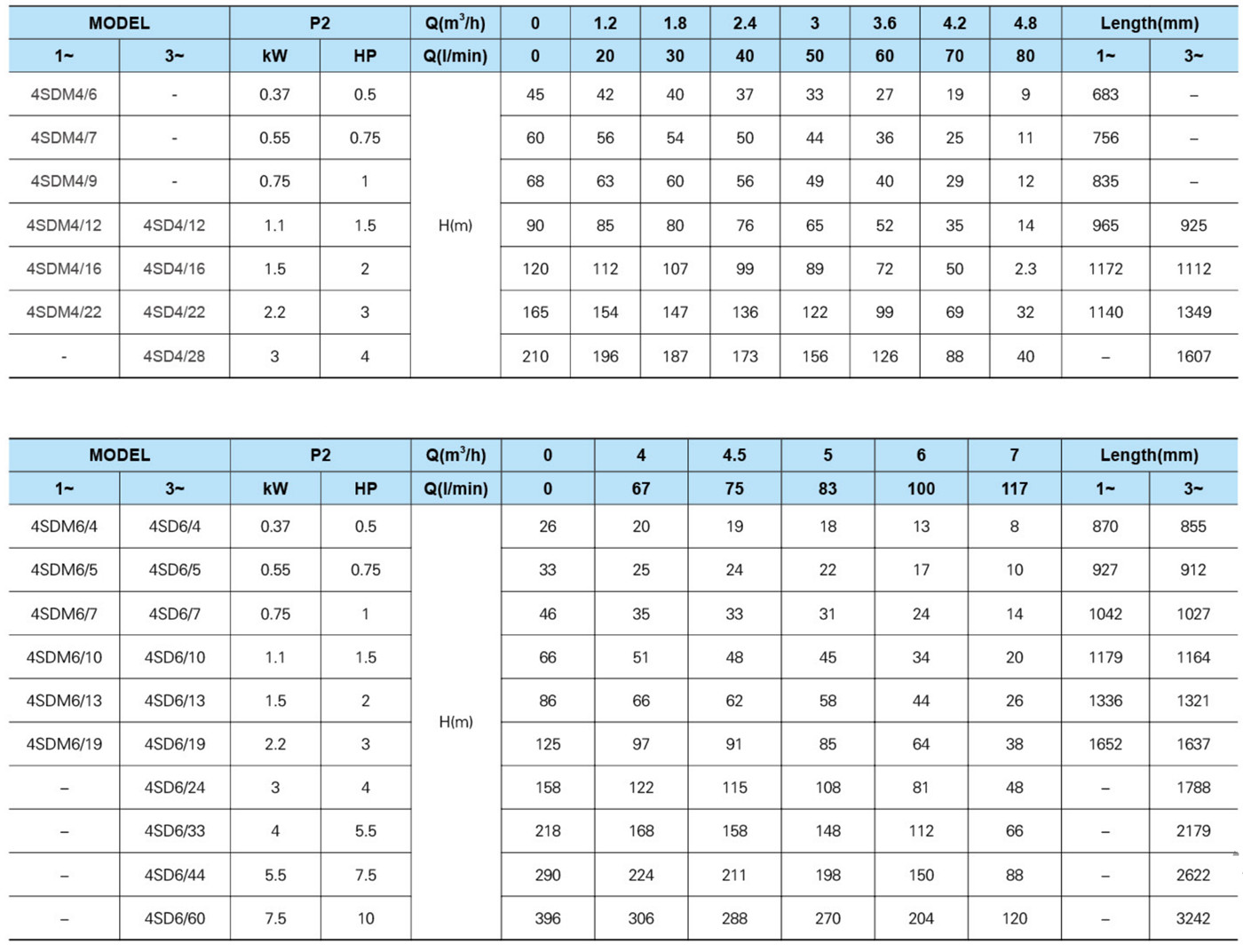

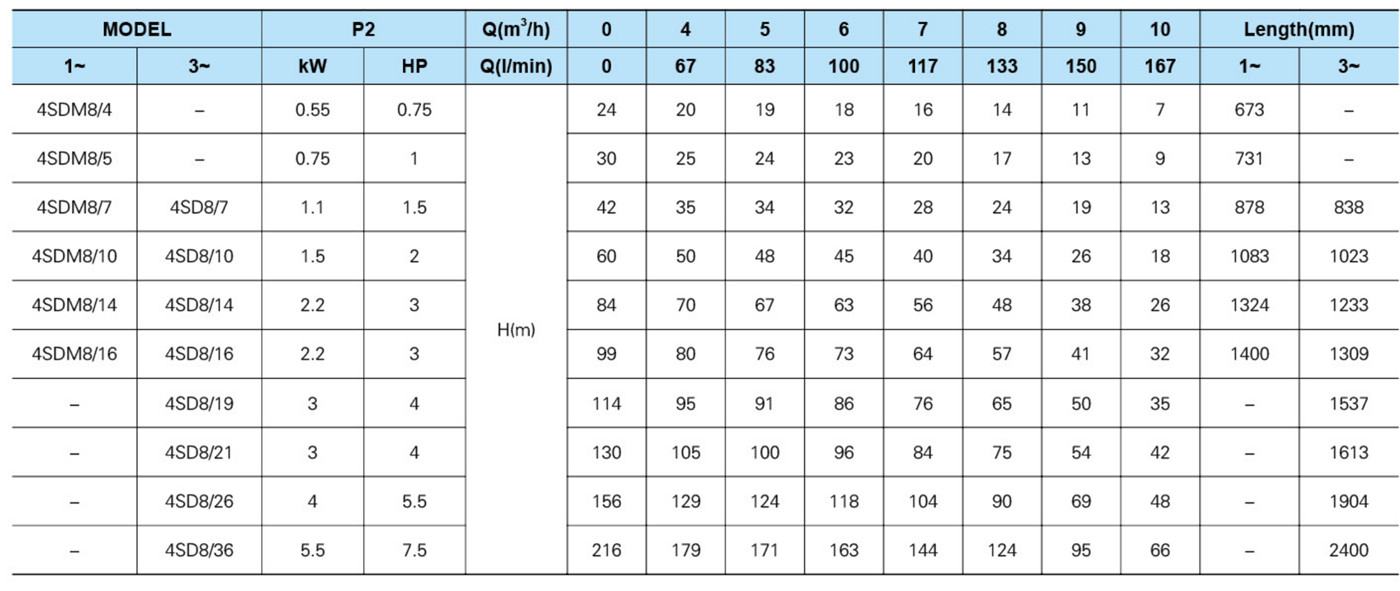

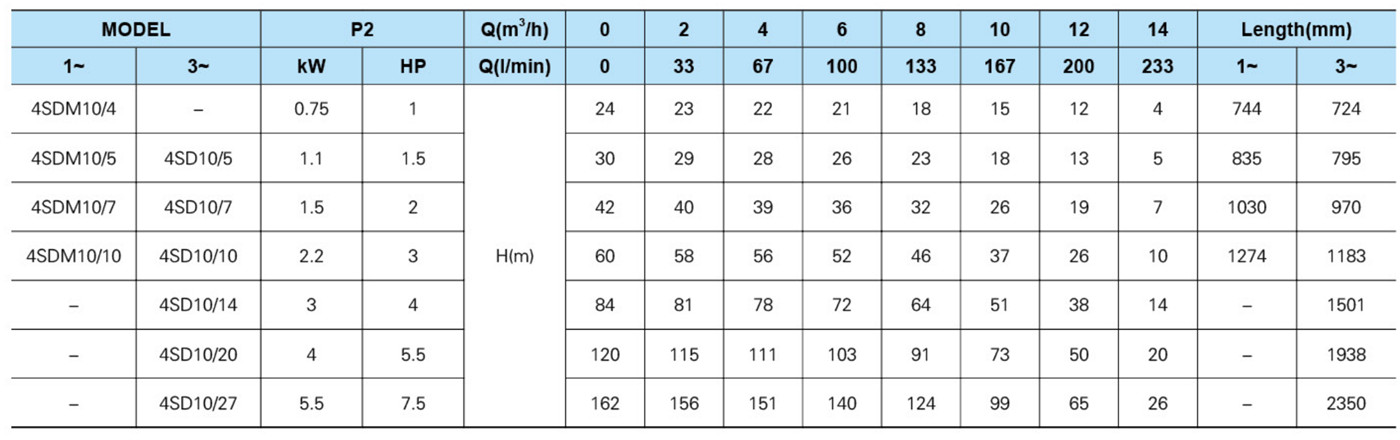

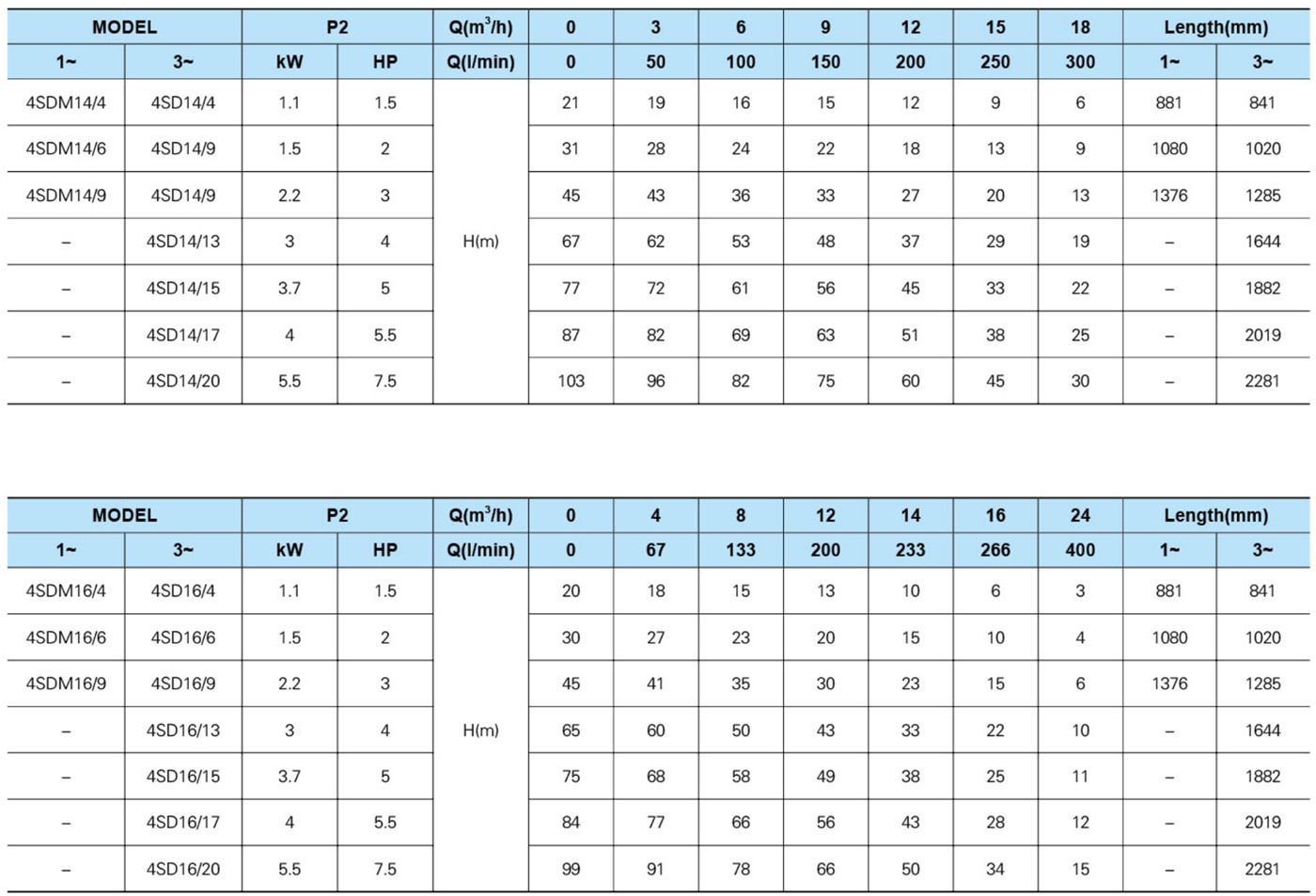

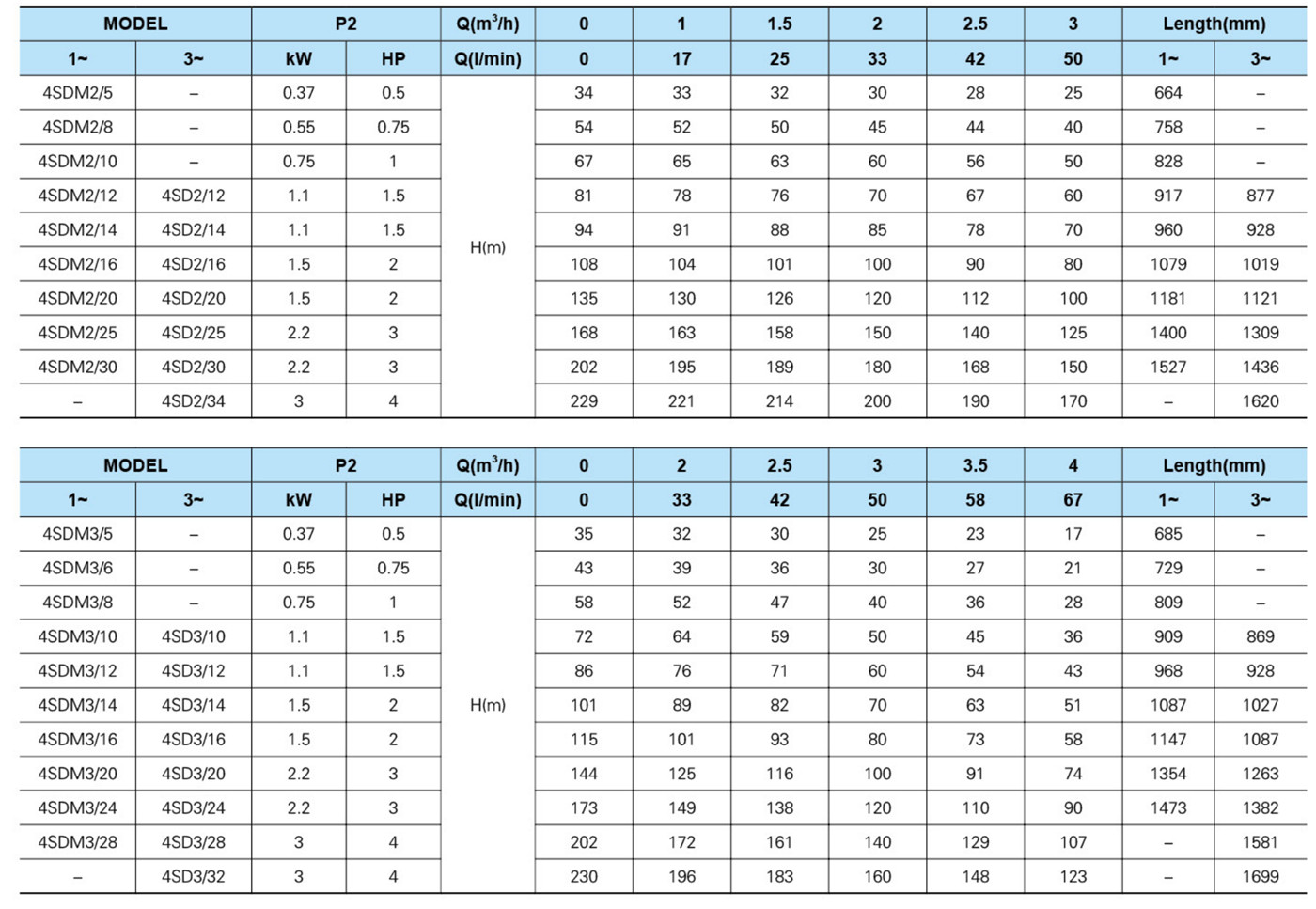

Technical data
More details or request
(1)Motor
100% copper winding coil,all new materials,stable working.
(2)Voltage
Single phase 220V-240V/50HZ, Three phase 380V-415V/50HZ.
Also do 60HZ
(3)Shaft
304# S/S shaft could be made
(4)Capacitor
One type is Capacitor inside the motor ,another type is capacitor with control box
(5)Cable
1.5M-2M standard cable length,to make longer cable as request.
Could choose for flat cable or round cable.
(6)Outlet and suction support
Brass material, stainless steel or iron material we could make for different choice and cost
Production line
Packing
Strong cardboard box with foam padding or combined with cylindrical carton.
Purchase discussion
What is the fluid, exactly?
What is the temperature of the slurry, the particles, the clean water, and the dirty water?
What standards do you have for performance, such as water flow and head requirements, and what motor power do you prefer?
certain voltage and frequency, three or one phases?
The customer may also specify the type of pump, the material for the parts, the type and length of the cable, etc.
We then select the pump based on all available data and give you a recommendation.
Installation instruction
Never let the pump run out of water!
As a result, the liquid level that needs to be pushed must always be higher than the level of the intake filter's holes made of stainless steel.
Because plastic delivery pipes are being used, a steel or nylon rope should be used to hook the pump while removing it from or installing it into the well.
Before installing the pump, make sure the well is free of sand, straight, and big enough to accommodate the pump.
Warranty
abide by the CE standard and ISO 9001 quality system.
One-year warranty; we provide pump components for repairs made after the first year.
