2.5 Inch Deep Well Submersible Pump

Short Description:

  • ◎ Structure: Multistage pump
  • ◎ Motor power: Electric
  • ◎ Motor type: Oil filled cooling,100% copper winding coil
  • ◎ Body material: Stainless steel
  • ◎ Impeller material: plastic
  • ◎ Outlet material: Brass

Product Detail

Product Tags

p-d

Application

widely used in agricultural irrigation and drainage, factories, mines, construction, urban and rural household uses. Especially for pumping deep well underground water and transporting clean or dirty water.
well-suited to installation in:Wells,Discharge tubes,Water tanks,and so on.

Working conditions

Insulation class:B
Protection grade:IP 68
Highest temperature of liquid:35℃

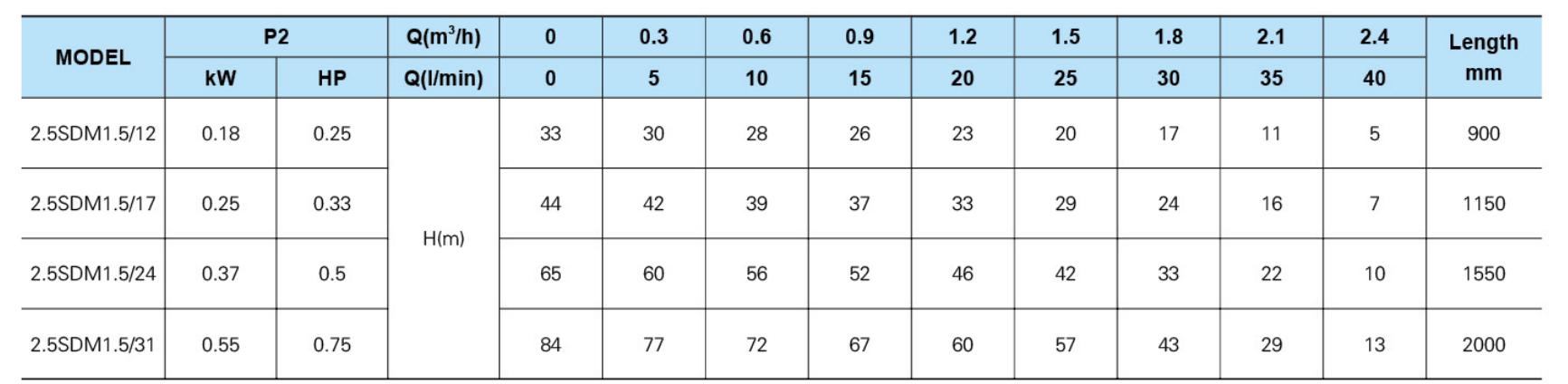

Technical data


More details or request

(1)Motor
100% copper wire,never use renew materials,steady operation.
(2)Voltage
Single phase 220V-240V/50HZ, Three phase 380V-415V/50HZ.
60HZ also could be made
(3)Shaft
304# S/S shaft could be your choice
(4)Capacitor
Capacitor could be inside the motor ,or outside install with control box
(5)Cable
Standard with 1.5M-2M cable,longer cable length as your require
Choice for flat cable or round cable.
(6)Outlet and suction support
Prefer Brass material, offer stainless steel or iron material.

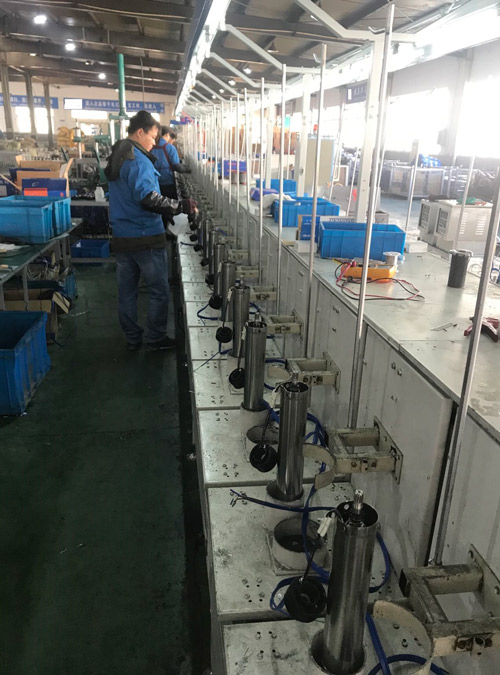

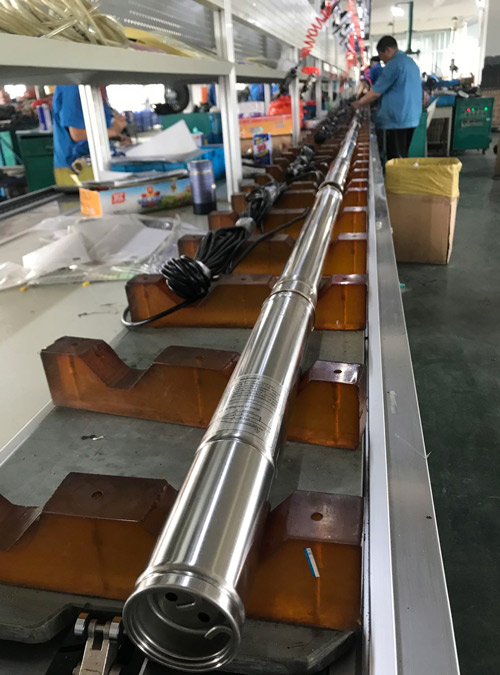

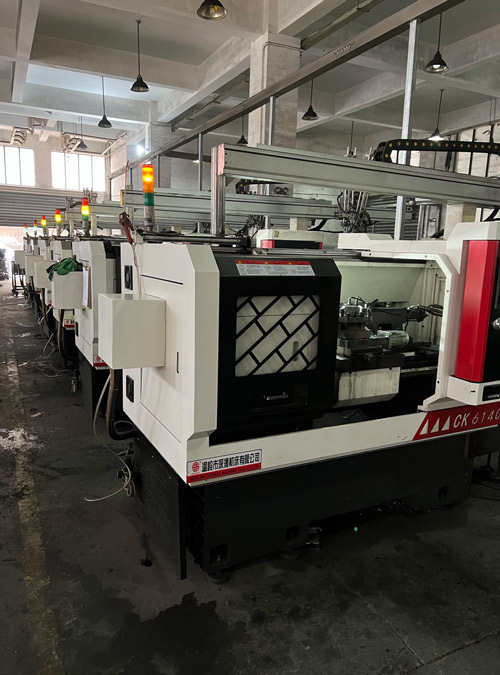

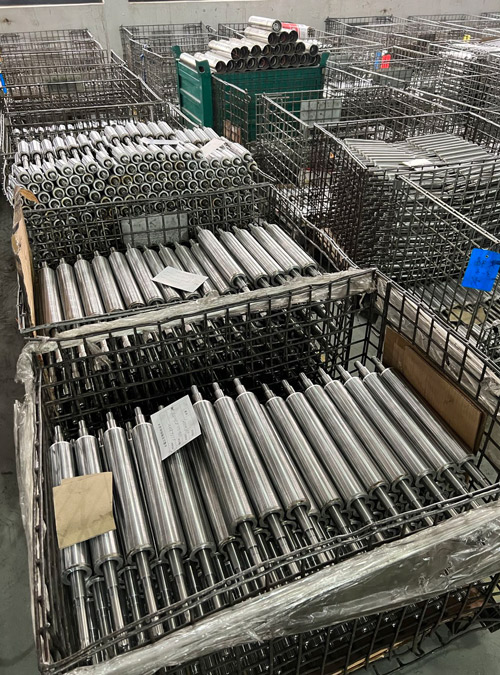

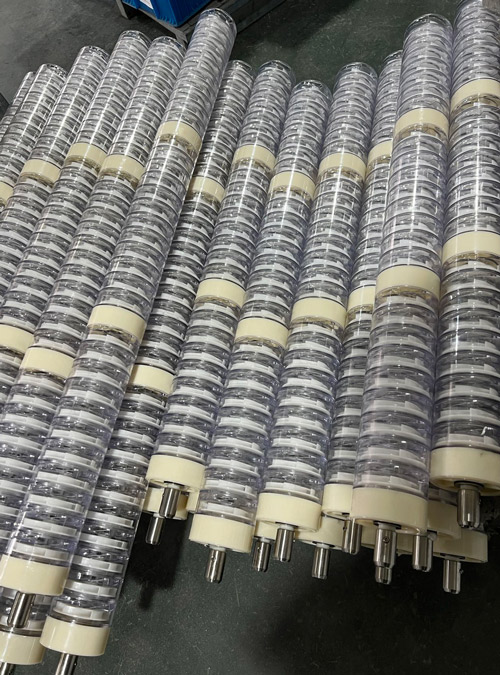

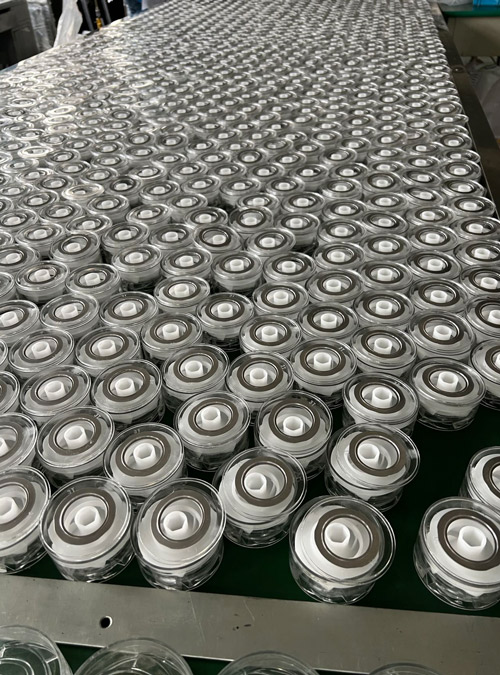

Production line

line-1
line-2
line-3
line-4
line-5
line-6

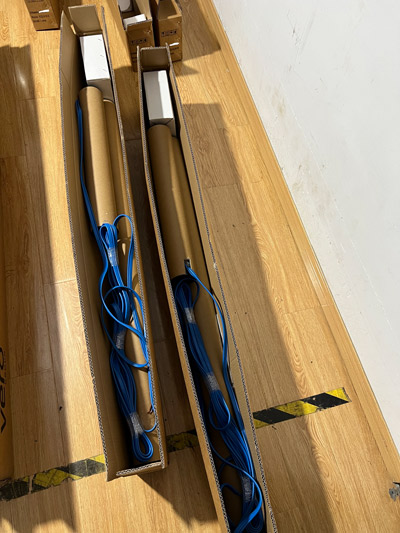

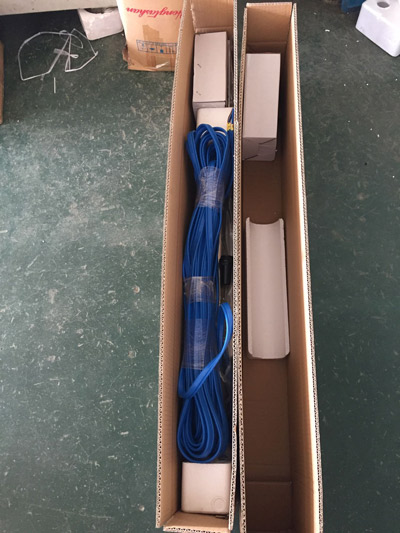

Packing

Strong carton box with foam protection or with cylindrical carton together

pack-0
pack-1

Purchase discussion

What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
Tell us your demand of performance ,such as water flow and head ,which motor power you prefer?
Detail voltage and frequency ,single phase or three phase?
Other conditions from customer : pump type,parts material,cable type and length,and so on.
With complete information, then we select the pump and recommend to you.

Installation instruction

CAUTION: Never allow the pump to operate dry!!!
This means that the level of liquid to be pumped must never go below the level of the holes on the bottom of the stainless steel intake filter.
NOTE: A plastic delivery pipe is being used, it is advisable to used a steel or nylon rope to hook the pump when you need to remove the pump from the well or place it in the well.
Before situating the pump, make sure that the well is free of sand, straight, and that it has sufficient width to guarantee passage of the pump.

Warranty

CE standard, follow ISO9001 quality system.
one year warranty, over one year we provide pump parts for repairing.
